Mobile Shelving Recessed Rail Instructions




Mobile Shelving Recessed Rail Instructions
Mobile Shelving Recessed Rail Instructions
Mobile Shelving Recessed Rail Instructions

Mobile Shelving Recessed Rail Instructions

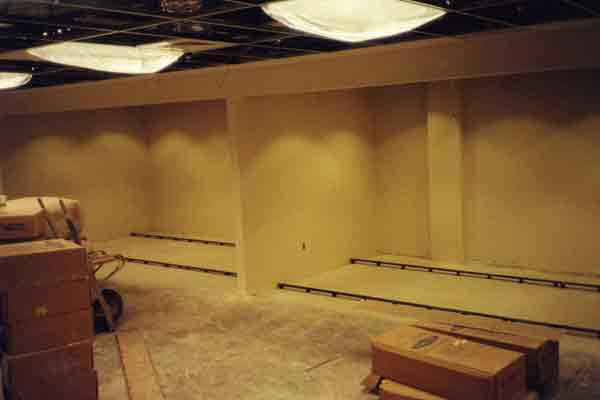

"PIT STLYE"
"RECESSING ONLY TRACK AREA"
recess the entire area and back fill after the track has been layed and leved.
Recess only the area the track will lay. please call for exact track placement on your system


Stainless Steel Dowel pins prevent tract joints form moving vertically or horizontally. The best track design on the market! PERIOD

6" of ramp on each side, rail is 1/2" high to ramp

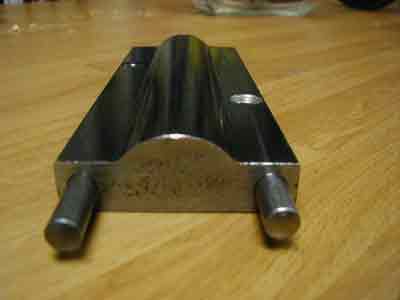

twin stainless dowle pins keep rail form moving up and down AND side to side

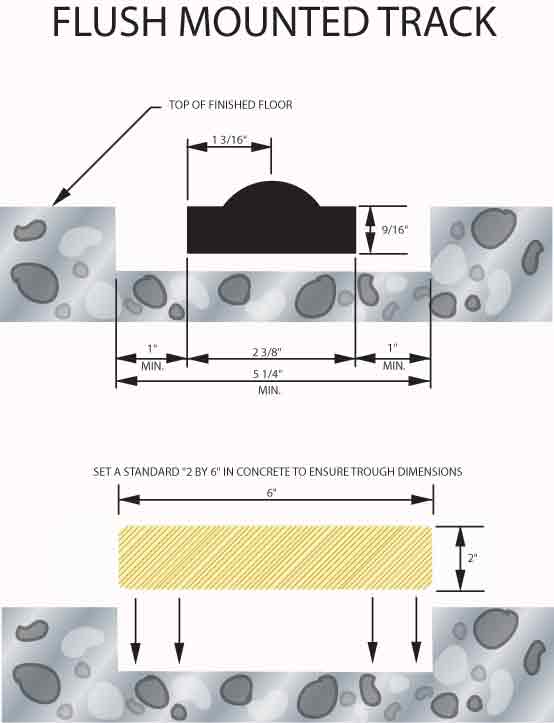

Click Image below to see ENLARGED dimensions and specifications on recessing rail
